Utility lighting refers to work lights fitted inside a ute tray, canopy, or 4×4 cargo area to light up the space itself, rather than the road ahead. It uses a wide flood beam suited to close-range tasks such as finding tools, loading and unloading gear, or setting up camp after dark.
Adventure Additions fits this type of lighting as part of the broader 12V and cabinetry work already carried out on utes, canopies, and 4x4s across Melbourne. Utility lighting is wired into the vehicle’s existing 12V or dual battery circuit rather than left as a stand-alone battery-powered fitting, so it draws from the same power source as the rest of the vehicle’s electrical system.
Because these fixtures use LED globes, the load they place on the battery system is minor even when left running for extended periods around camp or during a night job.

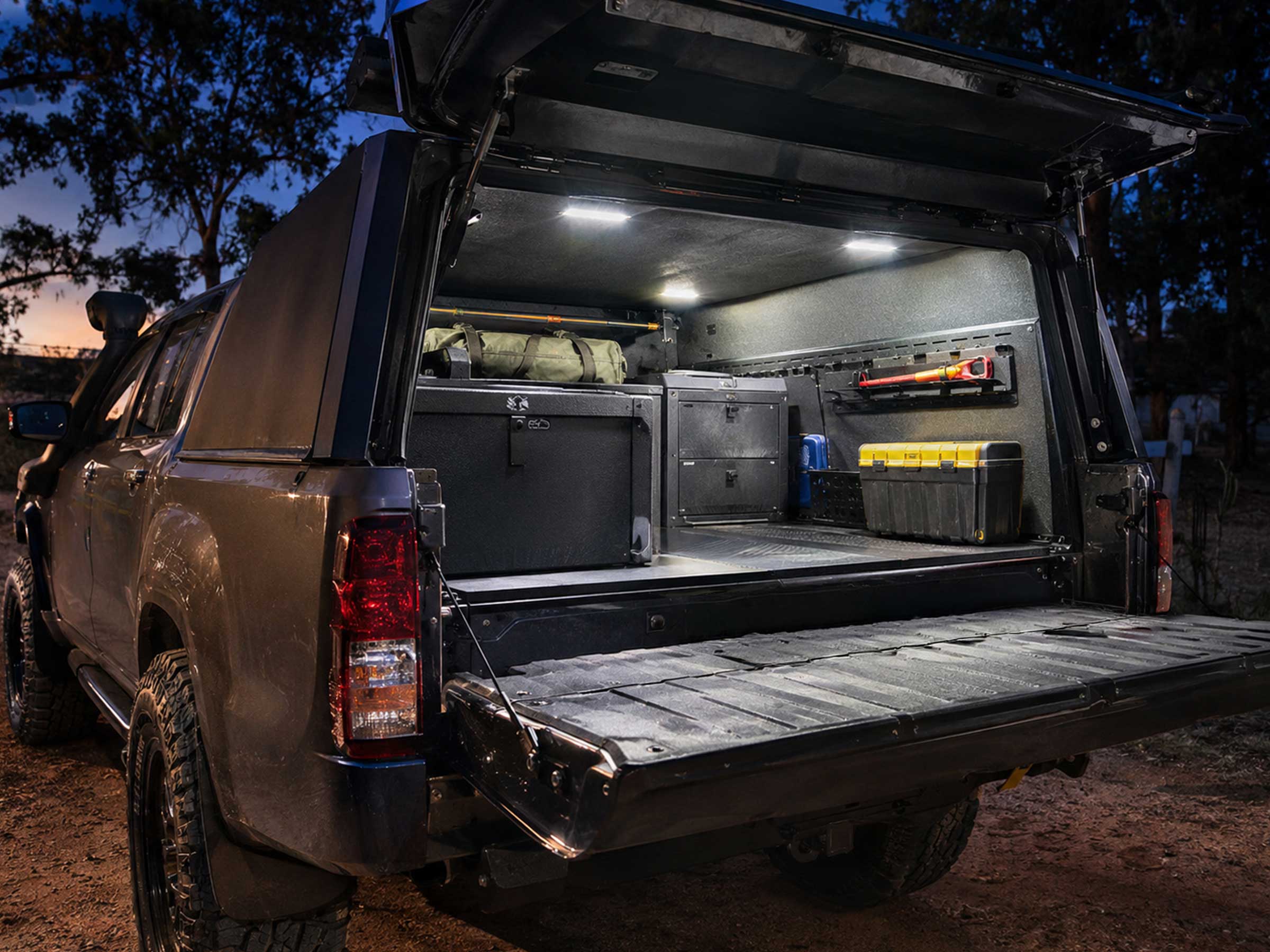

Flood-beam work lights fitted inside a canopy, tray, or tailgate area

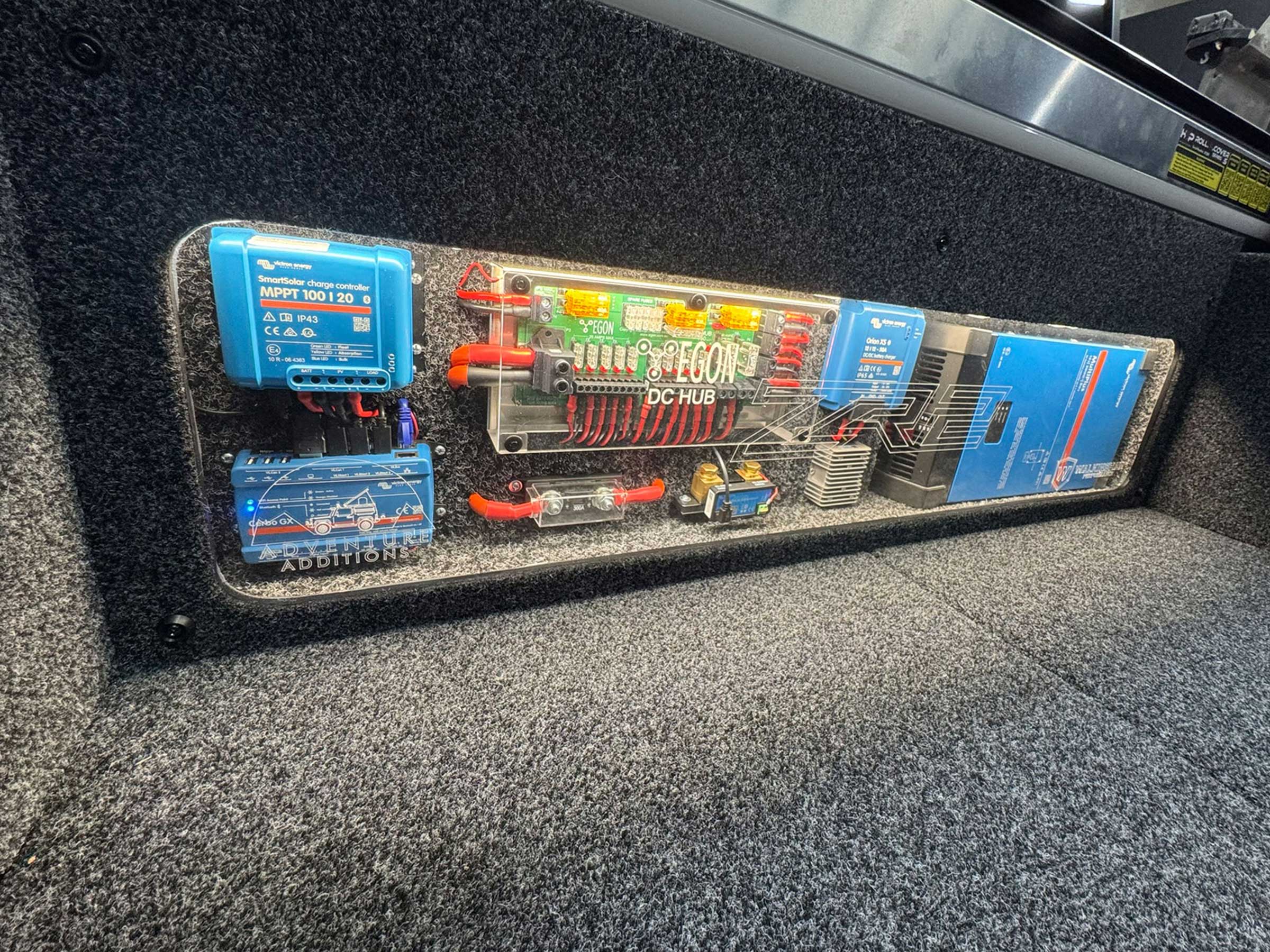

Adventure Additions manages dual battery systems, DC-DC charging, and solar setups for 4x4s and utes preparing for touring or off-grid work, and utility lighting is generally wired into that same circuit rather than run separately. On larger cabinetry and canopy builds, this often means running the lighting through a dedicated switch panel alongside other 12V accessories, rather than tapping into the vehicle’s factory wiring.
A recent custom cabinetry project for a Chevrolet Silverado utility tray included a multi-gang Bluetooth switch panel to control lighting and accessories from one point, alongside an illuminated display for the tray’s 12V components. Utility lighting on smaller jobs follows the same principle on a simpler scale, with a dedicated switch and proper circuit protection rather than a direct tap into another circuit.
Utility lighting is not the same as driving lights or spotlights, even though all three sit under the wider 4×4 lighting category. Driving lights and spotlights are aimed forward to extend visibility on the road or track, throwing a long, narrow beam into the distance. Utility lighting is aimed inward or downward, giving a wide, even flood of light across a tray, canopy, or campsite rather than distance down a road.
Choosing the right type comes down to what the light needs to do. A driving light setup will not help much when trying to find gear in a dark canopy, and a work light will not throw enough distance to be useful on a highway or a night track. Many touring and trade setups run both, wired and switched separately so each can be used for its own purpose.
Utility lighting is often requested alongside other tray, canopy, or cabinetry work rather than as a stand-alone job. Adventure Additions regularly carries out custom cabinetry, 12V power upgrades, and accessory fitouts on utes and 4x4s, and a set of work lights is a straightforward addition to fit in during that same build.
Larger projects, including custom cabinetry and full canopy fitouts, are generally carried out at the Braeside workshop. Smaller jobs, such as adding or replacing work lights in an existing canopy or tray, can often be handled through the mobile service across Greater Melbourne, depending on the scope of work and access to the vehicle.
It involves fitting 12V work lights inside a ute tray, canopy, or 4x4 cargo area, wired into the vehicle's electrical system to light up the space for loading gear, working, or setting up camp after dark.
They are commonly mounted inside canopy doors, along the walls of a tray, or under a tailgate, positioned to spread light evenly across the work area rather than in one direction.
LED work lights draw very little power, so normal use around camp or on a job has a minor effect on battery life, particularly on a vehicle with a dual battery system.
Yes. Wiring can be run to suit most existing canopies and trays, including ones that were not fitted with lighting when first built.
Utility lighting spreads a wide flood of light across a close work area such as a tray or campsite, while driving lights and spotlights throw a narrow beam forward to extend visibility on the road or track.
Many fixtures support dimming, and utility lighting is usually wired to its own switch or panel so it can be operated independently of other vehicle lighting.
Yes. Mobile installation is available across Greater Melbourne, alongside workshop appointments at the Braeside facility, depending on the scope of the job.
