Ford Ranger 2024 Anderson Plug and UHF Radio Installation

Challenge

Keeping portable appliances powered during long trips is a common challenge for off-road drivers. Without a proper high-current connection in the back of the vehicle, running accessories like 12-volt fridges or charging extra batteries often means using temporary, unreliable wiring. These quick fixes can cause voltage drops, poor performance, and even electrical failures when driving over rough ground.

Staying in touch in remote areas is also hard. Phone networks usually don’t work in the outback. Without a good radio, drivers might not be able to reach help, talk to other drivers, or get road updates. Using handheld radios inside the car often means weak signals and a short range.

Solution

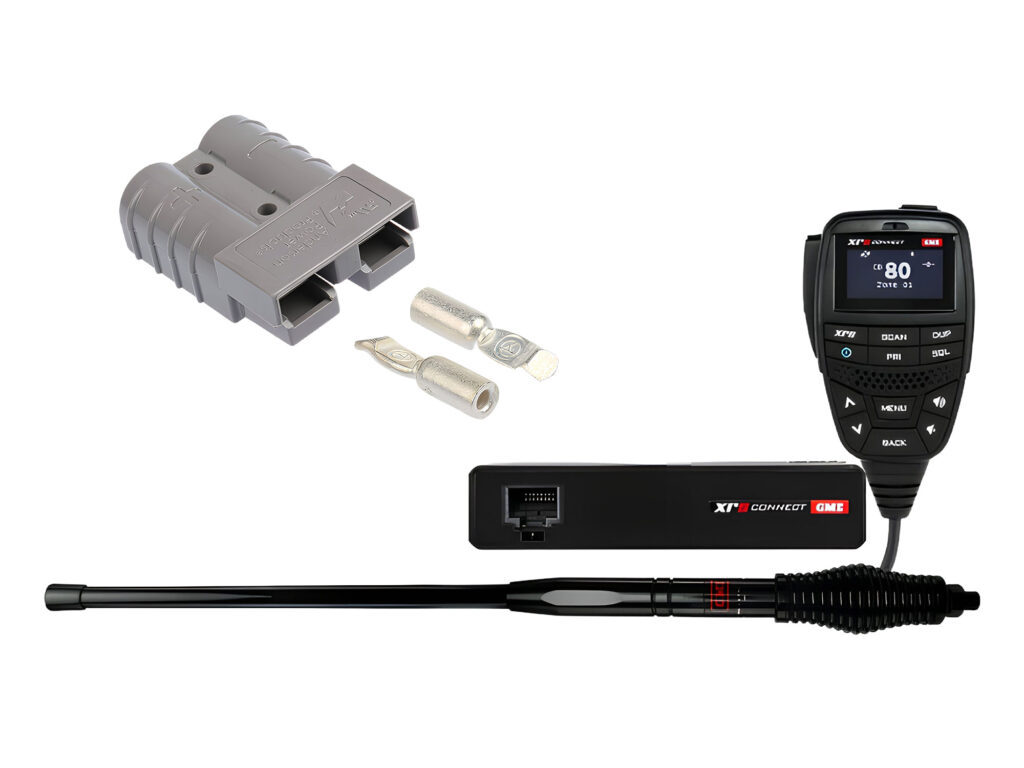

Installing a heavy-duty grey 50A Anderson plug gives you a safe, high-power connection for extra gear. Placing the plug in a protective housing in the back of the vehicle keeps it safe from weather and makes it easy to reach for fridge or charger cables. This setup delivers steady power and avoids the problems that come with using lighter cigarette lighter sockets.

For communication, the GME XRS Series UHF radio is a reliable way to stay connected. Adding a pass-through adaptor to the dashboard makes it easy to plug in or remove the handpiece, keeping the inside of the vehicle neat.

Having skilled installers do the job is important for safety. They make sure power wires are protected and run correctly to avoid short circuits or heat damage. Finishing the cables the right way protects both your car and your gear. This careful work also keeps your warranty safe, following the maker’s instructions and rules.

Execution

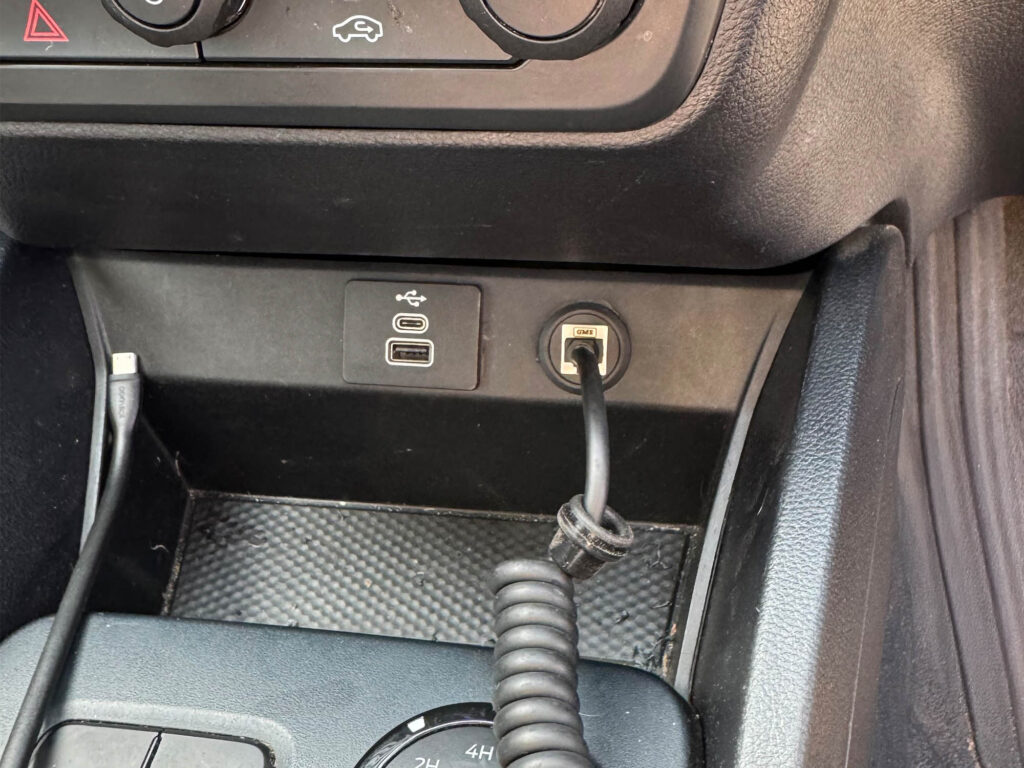

The Adventure Additions team started by putting in a GME adaptor into the Ford Ranger’s dashboard.

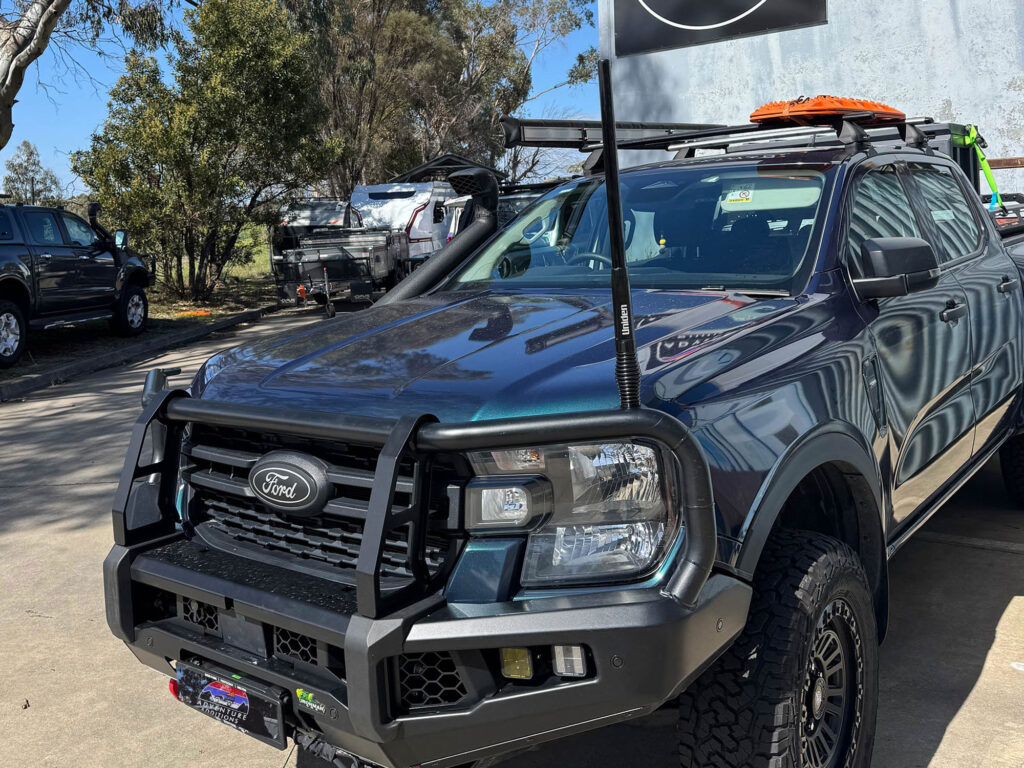

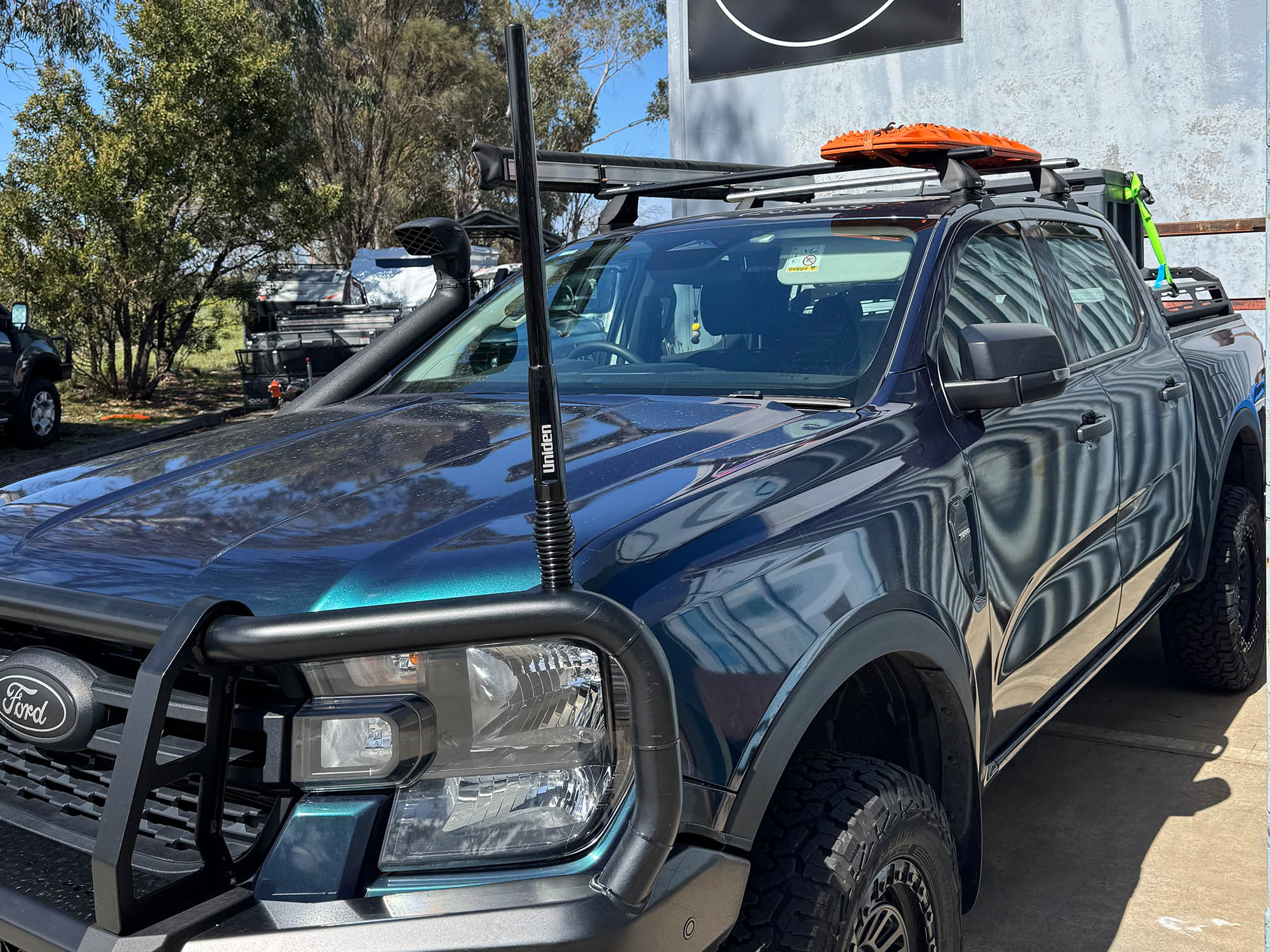

This adaptor lets the driver connect the XRS UHF handpiece neatly. The main radio unit was placed behind the dash, and the antenna cable was run through the firewall to a Uniden antenna on the bullbar. They tested all connections to ensure the signal was clear and everything was secure.

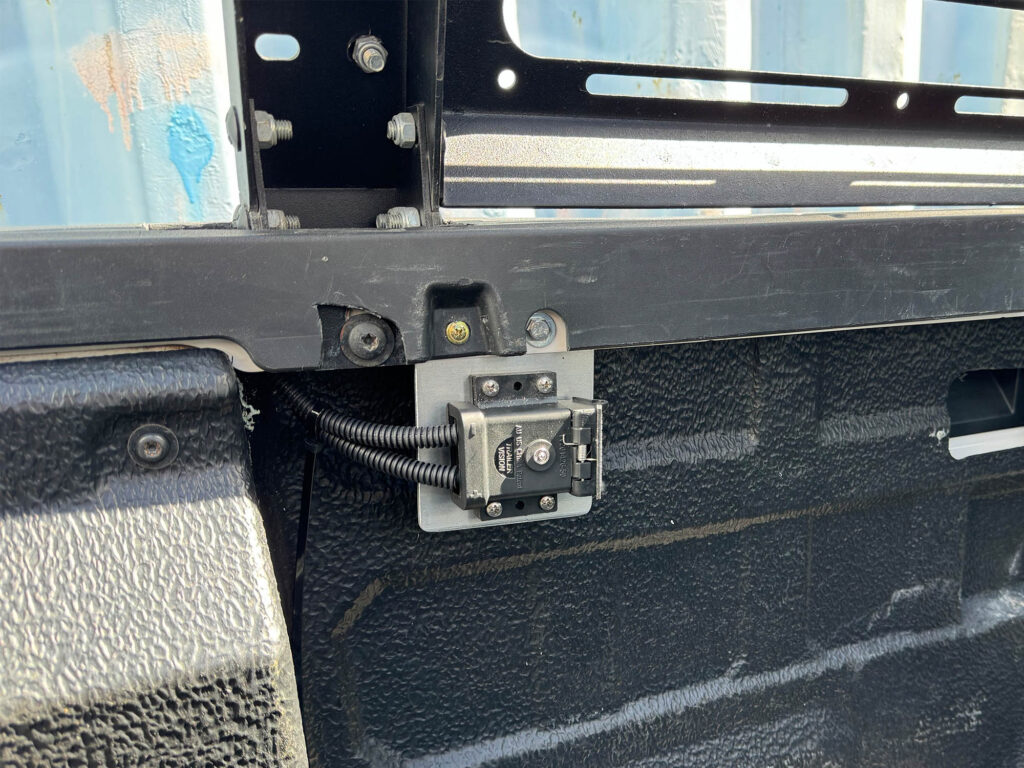

For the power setup, technicians put in a 12V 140-amp voltage-sensitive relay to control charging between the main battery and the rear outlet. They ran red and black 8BS battery cables from the engine bay to the rear of the vehicle, protected them with split conduit, and secured them along the chassis. In the tub, they used a custom bracket to mount the 50A Anderson plug and its housing, keeping it firmly in place and preventing it from moving during cargo.

Duration

The installation took around 4 hours at the Adventure Additions Braeside Facility.

Results

The Ford Ranger now features a reliable power outlet in the tub, capable of supporting high-draw appliances without voltage loss. The UHF radio system provides clear, long-range communication via a neat dashboard interface. Both installations are integrated into the vehicle to preserve cabin space and ensure electrical safety during off-road use.
