Brake Controller Installation for a Land Rover Defender 110

Author picture

Equipment Installation:

Redarc Pro Elite 12-24V Electric Brake Controller

Narva 12V 140A Voltage-Sensitive Relay

Custom Anderson Plug Bracket for secure rear towing assembly integration

We order and supply all necessary products for installation.

vehicle information:

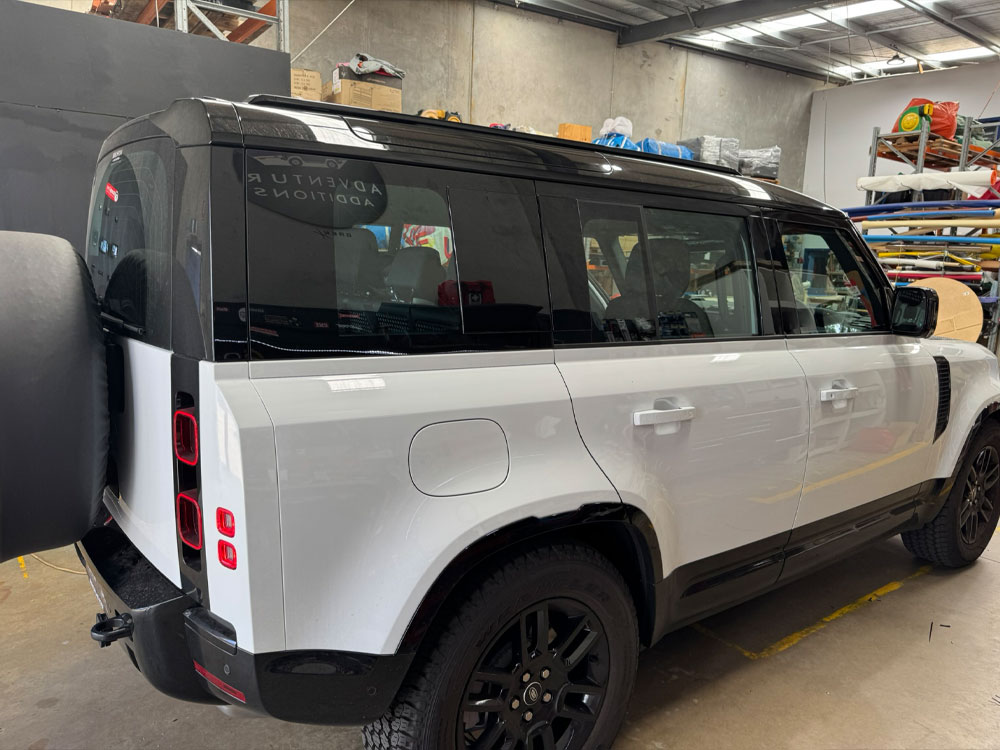

Land Rover Defender 110

YEAR:

2025

project details:

The owner of a 2025 Land Rover Defender 110 required a comprehensive towing solution, including electronic braking control, battery management, and secure power connections for a heavy-duty trailer. The Redarc Pro Elite brake controller was installed to provide proportional trailer braking, improving control and safety under varying load conditions. A Narva 12V 140A voltage-sensitive relay was integrated to manage dual-battery isolation, ensuring efficient power distribution while towing. A 12V stud-type auto reset circuit breaker was also installed to protect the electrical system from overloads.

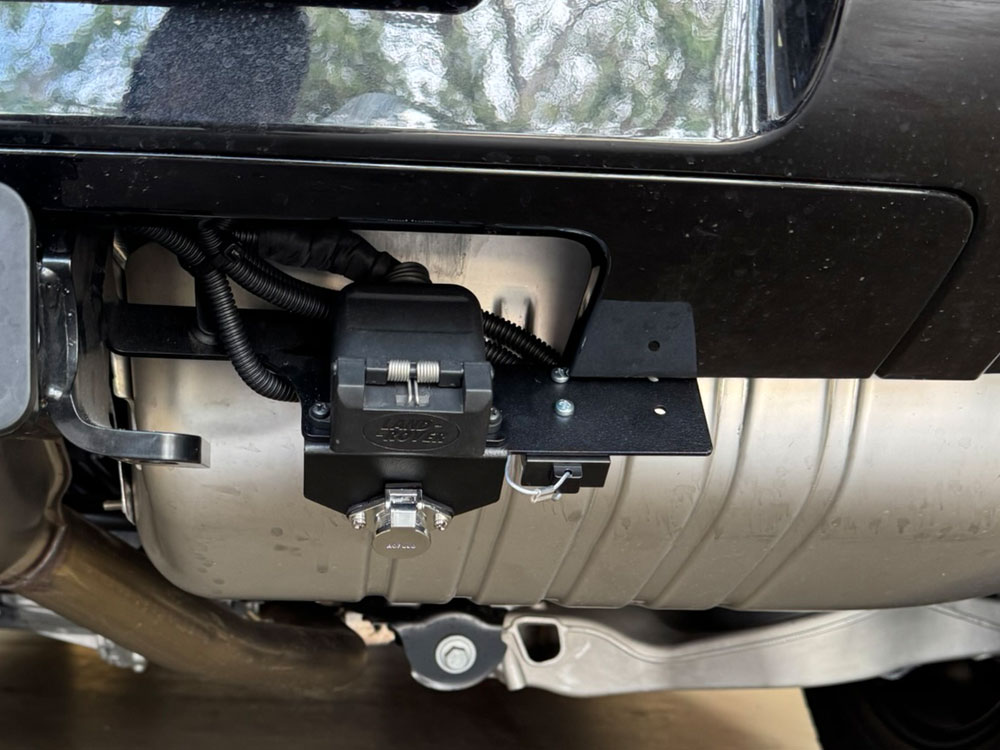

A custom-fabricated bracket was also designed and mounted to secure the Anderson plugs within the rear towing assembly. This modification provided a sturdy and accessible connection point, preventing plug movement and reducing wear from vibrations.

PRODUCTS INSTALLED:

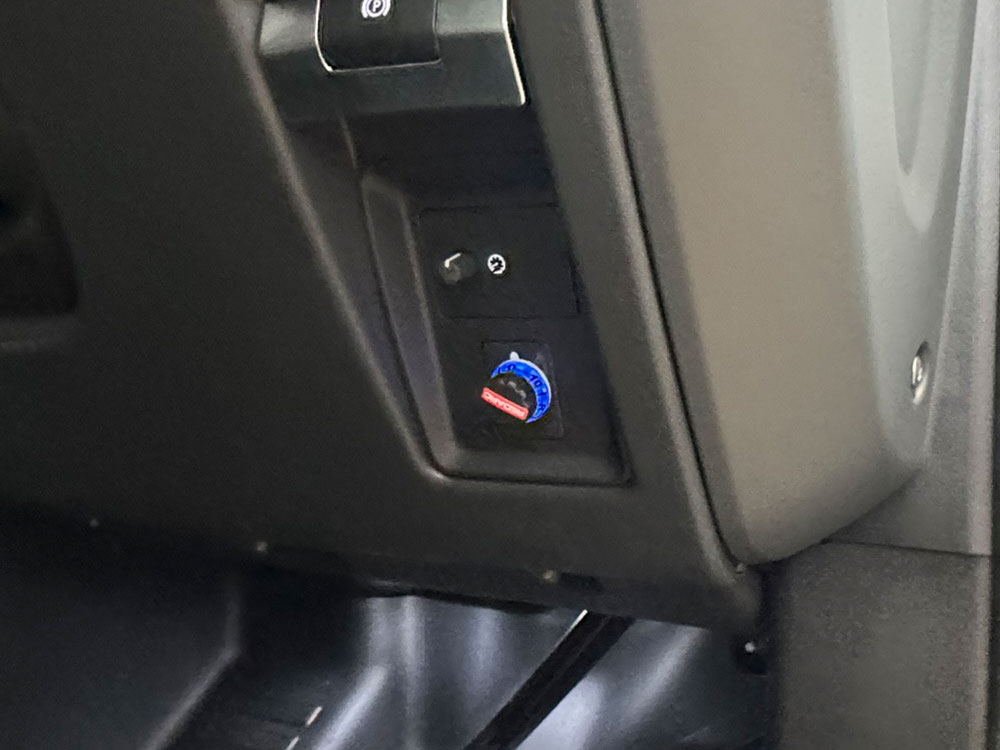

  • Redarc Pro Elite 12-24V Electric Brake Controller with dash-mounted control knob
  • Narva 12V 140A Voltage-Sensitive Relay for automatic dual-battery management
  • 12V Stud-Type Auto Reset Circuit Breaker for overload protection
  • Custom Anderson Plug Bracket for secure rear towing assembly integration

RESULTS:

The installation significantly enhanced the Defender’s towing capability, delivering seamless trailer braking, efficient power management, and improved connection security. The Redarc Pro Elite brake controller provided smooth and responsive braking, the Narva relay ensured proper battery isolation, and the circuit breaker added vital electrical protection. The custom Anderson plug bracket eliminated loose connections, ensuring long-term durability and ease of use. The vehicle is now fully optimized for towing heavy loads with confidence and reliability.
